A/1 GRX 2X 700c size & spec
A/1 Frame Geometry
A/1 Frameset | X-Small | Small | Medium | Large | X-Large |
R - Reach | 356 | 365 | 380 | 395 | 410 |
S - Stack | 514 | 536 | 563 | 595 | 620 |
TR - True Reach | 430 | 439 | 455 | 471 | 486 |
TS - True Stack | 566 | 588 | 615 | 647 | 672 |
2 - Top Tube Length | 518 | 534 | 557 | 583 | 605 |
3 - Wheelbase | 998 | 1008 | 1023 | 1038 | 1061 |
4 - Chainstay Length | 425 | 425 | 425 | 425 | 425 |
5 - Front Center | 582 | 592 | 607 | 623 | 645 |
6 - BB Drop | 68 | 68 | 68 | 68 | 68 |
7 - Seat Tube Angle | 72.5 | 72.5 | 72.5 | 72.5 | 72.5 |
8 - Head Tube Angle | 69.5 | 70 | 71 | 72 | 72 |
9 - Seat Tube Length | 500 | 520 | 540 | 560 | 580 |
10 - Head Tube Length | 95 | 115 | 140 | 170 | 195 |
11 - Standover Heigth | 754 | 774 | 797 | 821 | 841 |
12 - Seat Tube Length IN. | 19.7 | 20.8 | 21.6 | 22.4 | 23.2 |
A/1 GRX 2X 700c Specification
Specification | |
Frame | Allround-Allroad 700c/650b disc - AE81 ALLITE Super Mag - VAAST Allroad geometry - internal cable routing - dropper post ready. Rack and fender ready |
Frame Weight | 1300g |
Fork | VAAST Allround-Allroad full-carbon disc - rack & fender ready |
Tires | WTB Riddler 700 x 37mm w/Lightweight tubes |
Max Tire Clearance | 650b, 50mm / 700c, 42mm |
Rims | WTB ST i23 TCS, 28H tubeless compatible |
Rotors | Shimano SM-RT56 160mm |
Crank | Praxis Alba M24, 48/32T |
Cassette | Shimano 11-36 10-speed |
Shifters | Shimano GRX ST-RX400, 2X10 speed |
RD | Shimano GRX, RD-RX400 |
FD | Shimano GRX, FD-RX400 |
Chain | KMC X10 Nickel Plated |
Brakes | Shimano GRX RX400 Hydraulic |
Bottom Bracket | Praxis T47 IB Enduro Bearings |
Hub F | Sealed cartridge bearing, 12 x 100mm thru axle, 6-bolt, 28H |
Hub R | Sealed cartridge bearing, 11-speed, 12 x 142mm thru axle, 6-bolt, 28H |
Spokes | Double butted stainless |
Axles | VAAST M12 |
Handlebar | VAAST Allroad Pro, butted 6061 aluminum |
Stem | VAAST Allroad Pro, 3D forged, 6 degree |
Grips / Tape | VAAST Suede |
Seat Post | VAAST Micro adjust aluminum, 27.2mm x 350mm |
Saddle | WTB Silverado 142mm mid width |
LIGHTER, STIFFER, PROFOUNDLY BETTER.

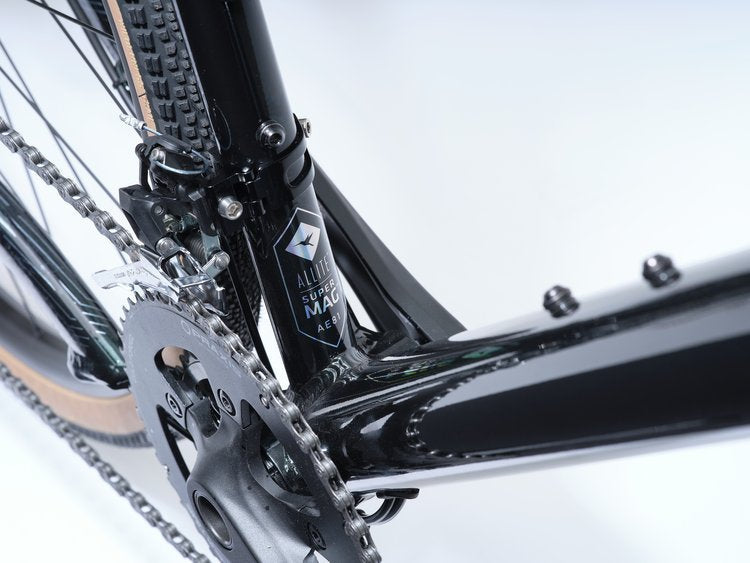

VAAST Bikes is the first to use ALLITE® SUPER MAGNESIUM™, a true innovation in material science. This high-strength alloy features excellent shock absorption properties, weighs 33% less than Aluminum and 50% less than Titanium by volume, and is significantly stronger than both.
Through the exclusive use of this eco-friendly metal, we have achieved a ride that feels like no other.
VERSATILE | ONE FRAME, TWO WHEELSETS
The Model A/1 supports both 650b and 700c with a frame, with 700c wheels and room for up to 42mm tires. While the switching to 650b wheelset will offer extra room up to 50c.
It is just a tire swap away and has been designed for riders who want the perfect blend of gravel capability without giving up anything on paved road group rides or their daily commute.
GEOMETRY THAT KNOWS YOUR NEEDS
The A/1 encourages you to go further yet stay comfortable and confident. The longer wheelbase and lowered bb drop compared to traditional road bikes are to give you more stability and handling in tactical terrain.
While the relaxed geometry is an art that combines endurance ride, gravel ride, and bike touring, all in one frame.
