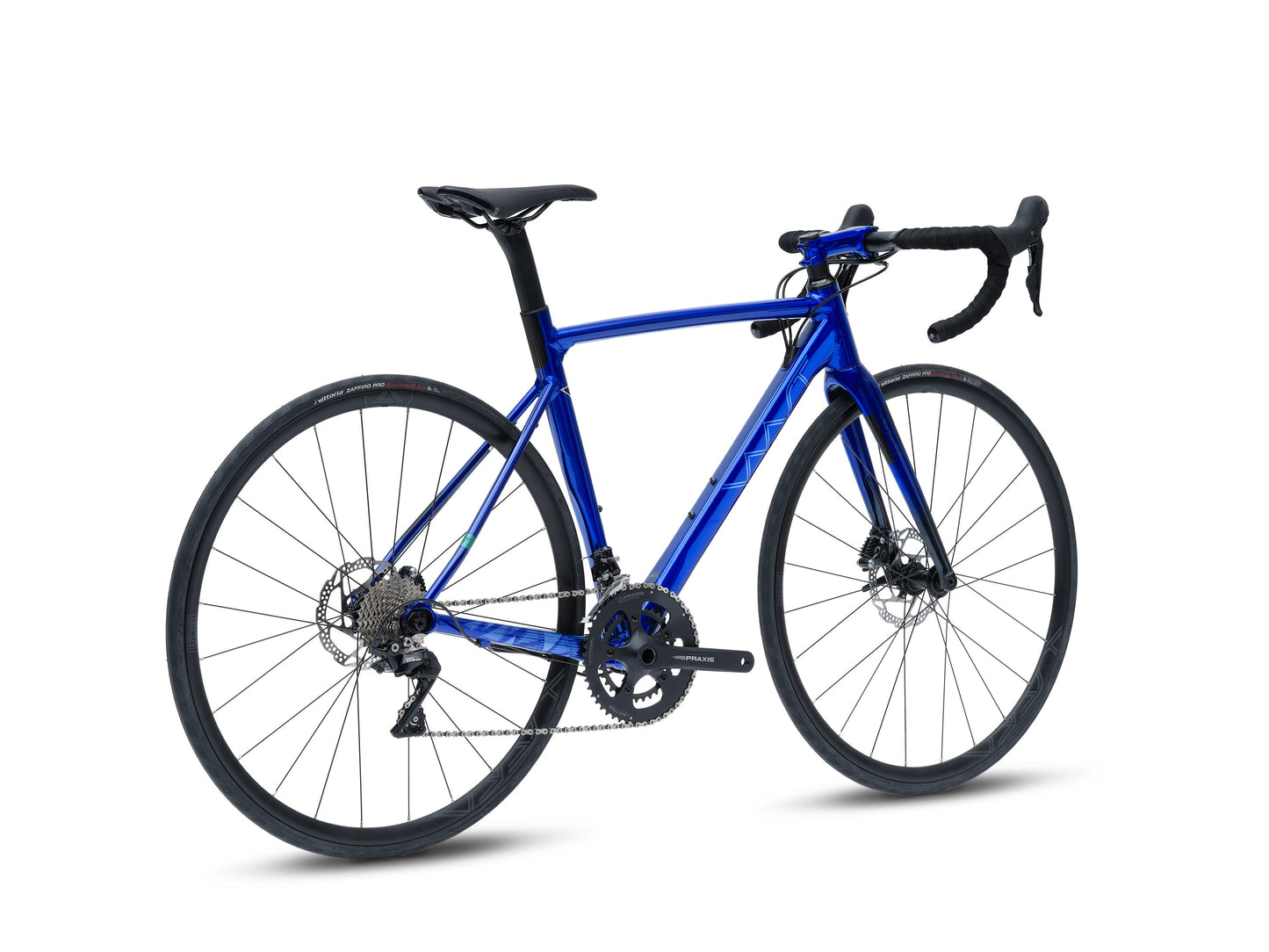

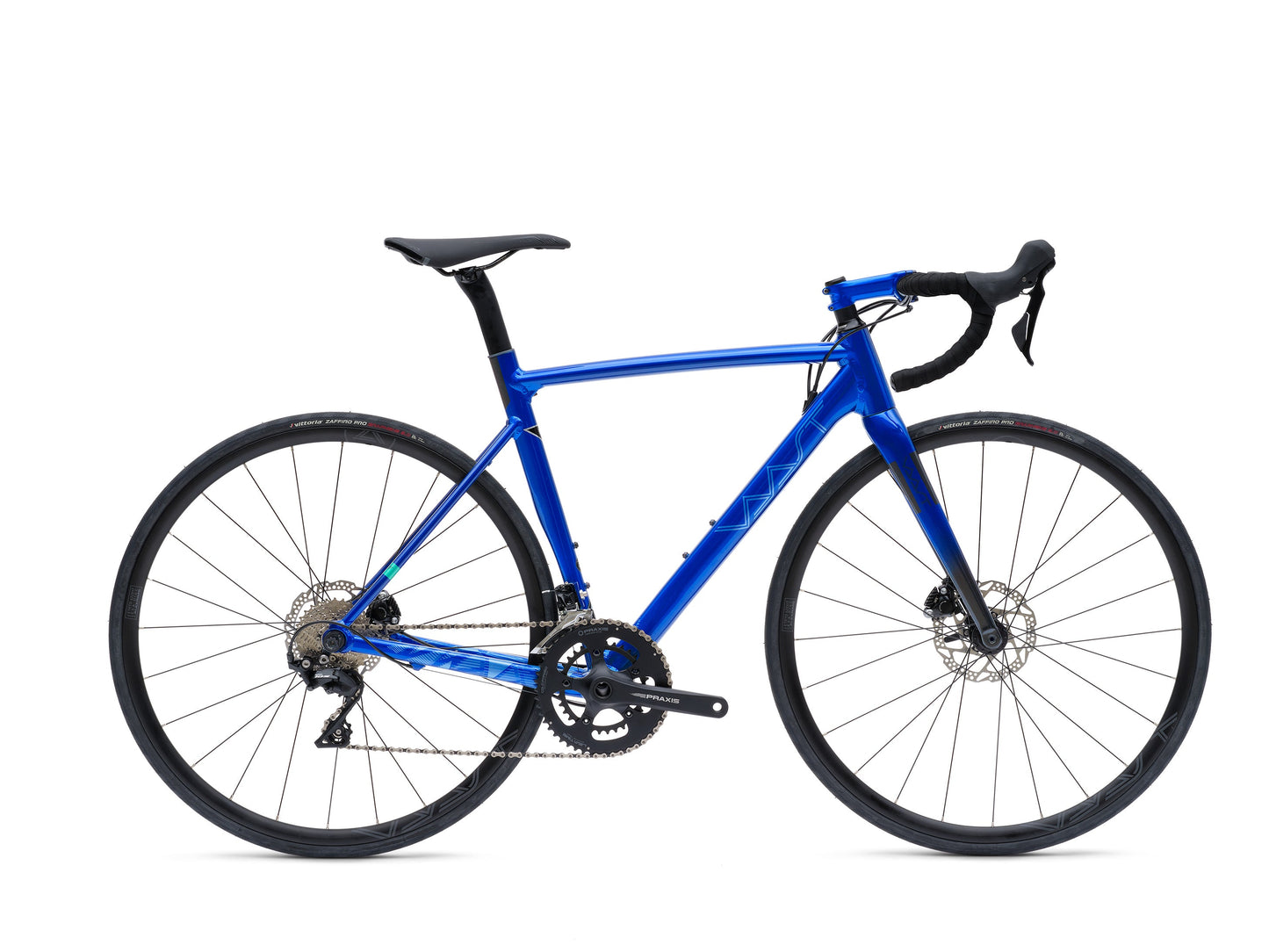

R/1 700C 105 MORPHO BLUE
R/1 700C 105 MORPHO BLUE
The R/1 105 delivers the smooth dependability of Shimano’s storied 105 plus the unmatched qualities only a Super Magnesium frame can deliver resulting in a seriously formidable tarmac machine.
The aero-inspired Model R/1 Road optimizes technology and design for pavement - where speed, aerodynamics, weight and agility make all the difference. With a weight and performance level other non-ferrous metal frames can’t quite achieve, the 1250g Allite Super Magnesium™ frame is meticulously crafted with progressive geometry that results in the perfect fit no matter the rider. Utilizing VAAST V-Fit parameters for comfort and control, the head tube and seat tube angles are carefully chosen to place the rider in an optimal, confident position and ensure proper trail for neutral steering geometry. While the R/1 adopts the use of VAAST’s proprietary V-Fit technology like its award-winning A/1 predecessor, unlike the A/1, the R/1 tube profiles re-imagine Super Magnesium capabilities resulting in a 30% aerodynamic performance gain over conventional round tube frames. Additionally, clearances are ample enough to fit up to 30mm tires, or to allow fenders to be fitted with conventional 25/28mm tires. All of this, combined with lightweight aluminum wheel sets, and the proprietary carbon fork and seatpost, rounds up to a complete package for a ride worthy of getting lost in the wind for countless miles.
Light, aerodynamic, fast - the all new VAAST Model R/1.
R/1 Frame Geometry
|E - Reach||365||370||380||388||400|
|F - Stack||500||510||540||565||590|
|O - Seat Tube Length||470||500||520||540||560|
|G - Top Tube Length, Horizontal||494||511||540||561||580|
|M - Seat Tube Angle||75.5||74.5||73.5||73||73|
|N - Head Tube Angle||70.5||71.5||72||73||73|
|10 - Head Tube Length||94||101||129||153||183|
|H - Wheelbase||973||973||988||990||1009|
|I - Chainstay Length||410||410||410||410||410|
|J - Front Center||575||575||591||590||610|
|K - BB Drop||75||75||72||72||69|
|L - BB Height||269||269||272||272||275|
|Q - Standover Heigth||722||742||766||788||812|
|R - Fork Rake/Offset||52||52||52||45||45|
|S - Fork Length, Full||375||375||375||375||375|
|T - Trail||65||59||56||57||57|
R/1 105 Specification
|Frame||Road 700c disc, AE81 SuperMag, VAAST Road geometry, internal cable routing, fender ready. Up to 30mm tire clearance|
|Fork||VAAST Road full-carbon disc. Up to 30mm tire clearance|
|Tires||Vittoria Zaffiro Pro, 700 x 25mm w/Ultralight tubes|
|Max Tire Clearance||30mm|
|Rims||VAAST Aluminum, Tubeless ready|
|Rotors||Shimano RT54 160mm|
|Crank||Praxis Alba M24, 50/34t|
|Cassette||Shimano 105 R7000, 11-speed, 11-30t|
|Shifter||Shimano 105 R7020 hydraulic disc|
|RD||Shimano 105 R7000-SS|
|FD||Shimano 105 R7000, braze-on|
|Chain||KMC X11 11-speed|
|Brakes||Shimano 105 R7070, hydraulic disc|
|Bottom Bracket||Praxis T47 IB Enduro Bearings|
|Hub F||Sealed cartridge bearing, 12 x 100mm thru axle, Centerlock, 28H|
|Hub R||Sealed cartridge bearing, 11-speed, 12 x 142mm thru axle, Centerlock, 28H|
|Axles||VAAST M12 w/Removable lever|
|Handlebar||VAAST Aero, butted 6061 aluminum, 74mm reach/116mm drop|
|Stem||VAAST Aero Pro, 3D forged, 8 degree|
|Grips / Tape||VAAST Suede|
|Seat Post||VAAST Carbon fiber, (300mm 49/52, 350mm 54/56/58/60)|
|Saddle||Prologo Scratch RS|
CRAFTED FOR SPEED
LIGHTER, STIFFER, PROFOUNDLY BETTER.

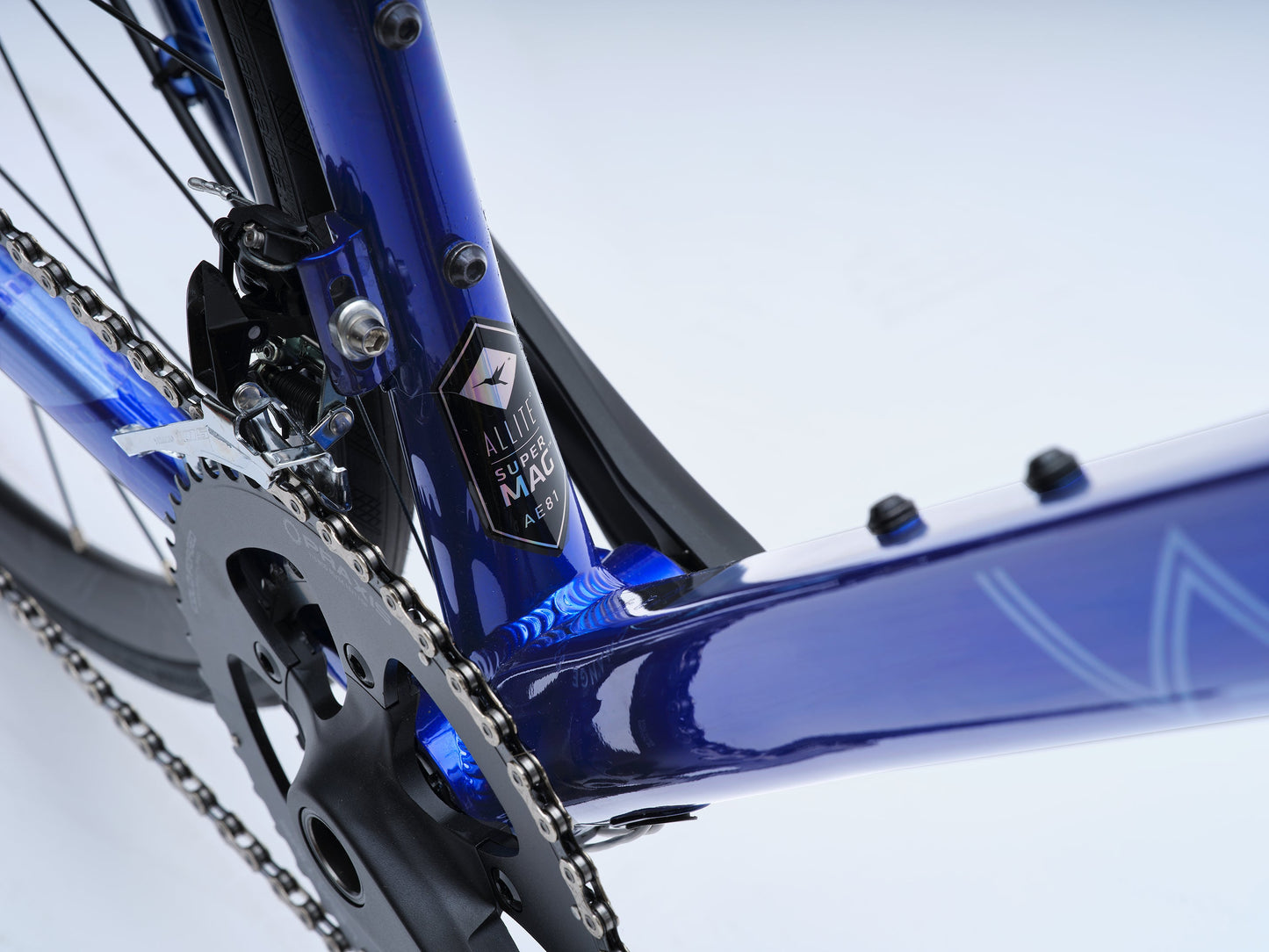

VAAST Bikes is the first to use ALLITE® SUPER MAGNESIUM™, a true innovation in material science. This high-strength alloy features excellent shock absorption properties, weighs 33% less than Aluminum and 50% less than Titanium by volume, and is significantly stronger than both.
Through the exclusive use of this eco-friendly metal, we have achieved a ride that feels like no other.
CONFIDENCE AT FULL SPEED.
With a weight and performance level other non-ferrous metal frames can’t quite achieve, the 1250g Allite Super Magnesium™ frame is meticulously crafted with progressive geometry that results in the perfect fit no matter the rider. Utilizing VAAST V-Fit parameters for comfort and control, the head tube and seat tube angles are carefully chosen to place the rider in an optimal, confident position and ensure proper trail for neutral steering geometry.
COMMITTED TO A VIBRANT CYCLING ECOLOGY
From the beginning we’ve been inspired to promote the responsible use of materials and responsible riding in all its forms. Our frames are more sustainably made and they’re 100% recyclable. We were also the first bike brand to use 100% fiber-based, plastic-free packaging.
