R/1 Frameset
R/1 Frame Geometry
A/1 Frameset | X-Small | Small | Medium | Large | X-Large |
E - Reach | 365 | 370 | 380 | 388 | 400 |
F - Stack | 500 | 510 | 540 | 565 | 590 |
O - Seat Tube Length | 470 | 500 | 520 | 540 | 560 |
G - Top Tube Length, Horizontal | 494 | 511 | 540 | 561 | 580 |
M - Seat Tube Angle | 75.5 | 74.5 | 73.5 | 73 | 73 |
N - Head Tube Angle | 70.5 | 71.5 | 72 | 73 | 73 |
10 - Head Tube Length | 94 | 101 | 129 | 153 | 183 |
H - Wheelbase | 973 | 973 | 988 | 990 | 1009 |
I - Chainstay Length | 410 | 410 | 410 | 410 | 410 |
J - Front Center | 575 | 575 | 591 | 590 | 610 |
K - BB Drop | 75 | 75 | 72 | 72 | 69 |
L - BB Height | 269 | 269 | 272 | 272 | 275 |
Q - Standover Heigth | 722 | 742 | 766 | 788 | 812 |
R - Fork Rake/Offset | 52 | 52 | 52 | 45 | 45 |
S - Fork Length, Full | 375 | 375 | 375 | 375 | 375 |
T - Trail | 65 | 59 | 56 | 57 | 57 |
Seatpost Length | 300 | 300 | 350 | 350 | 350 |

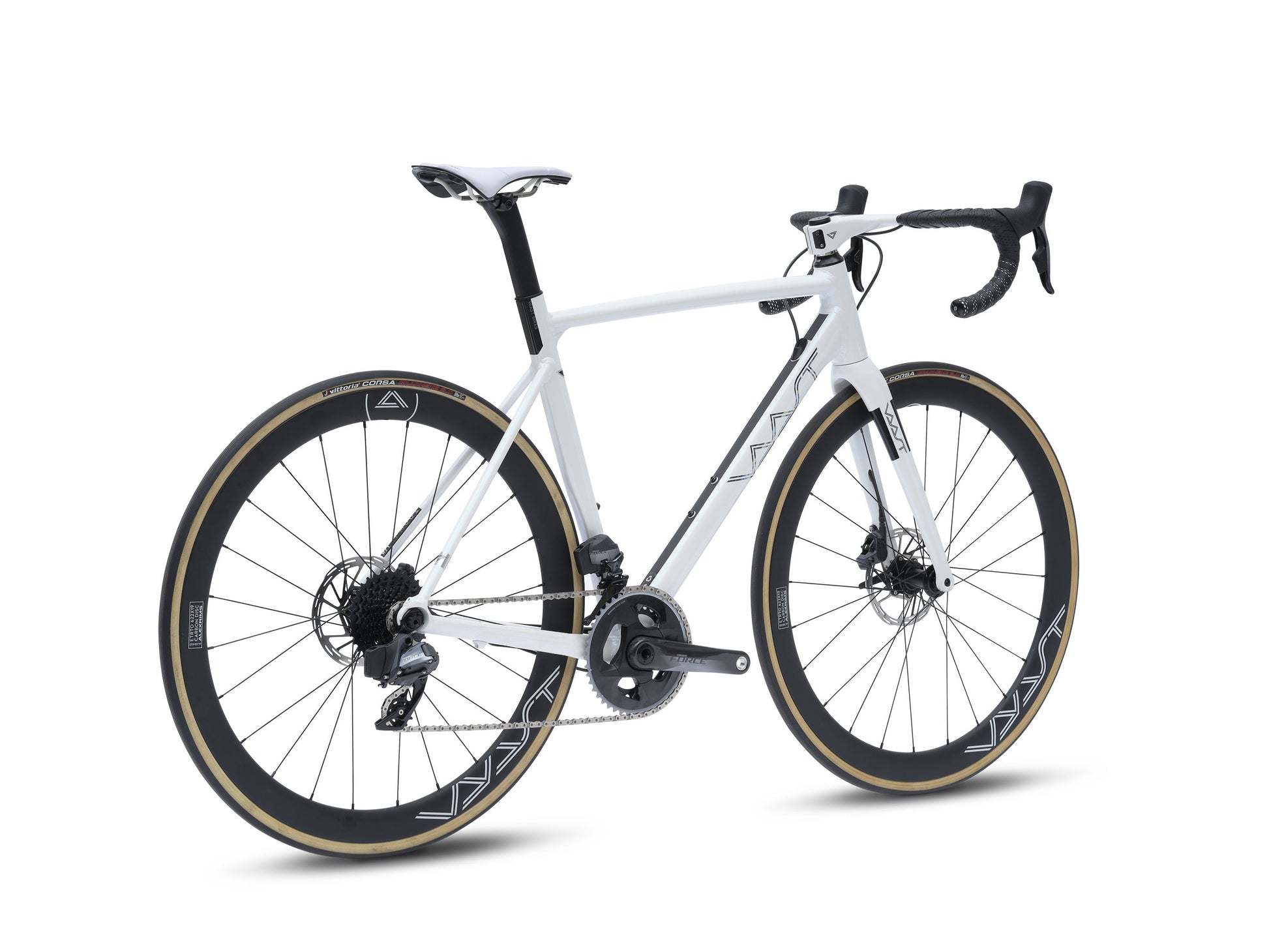

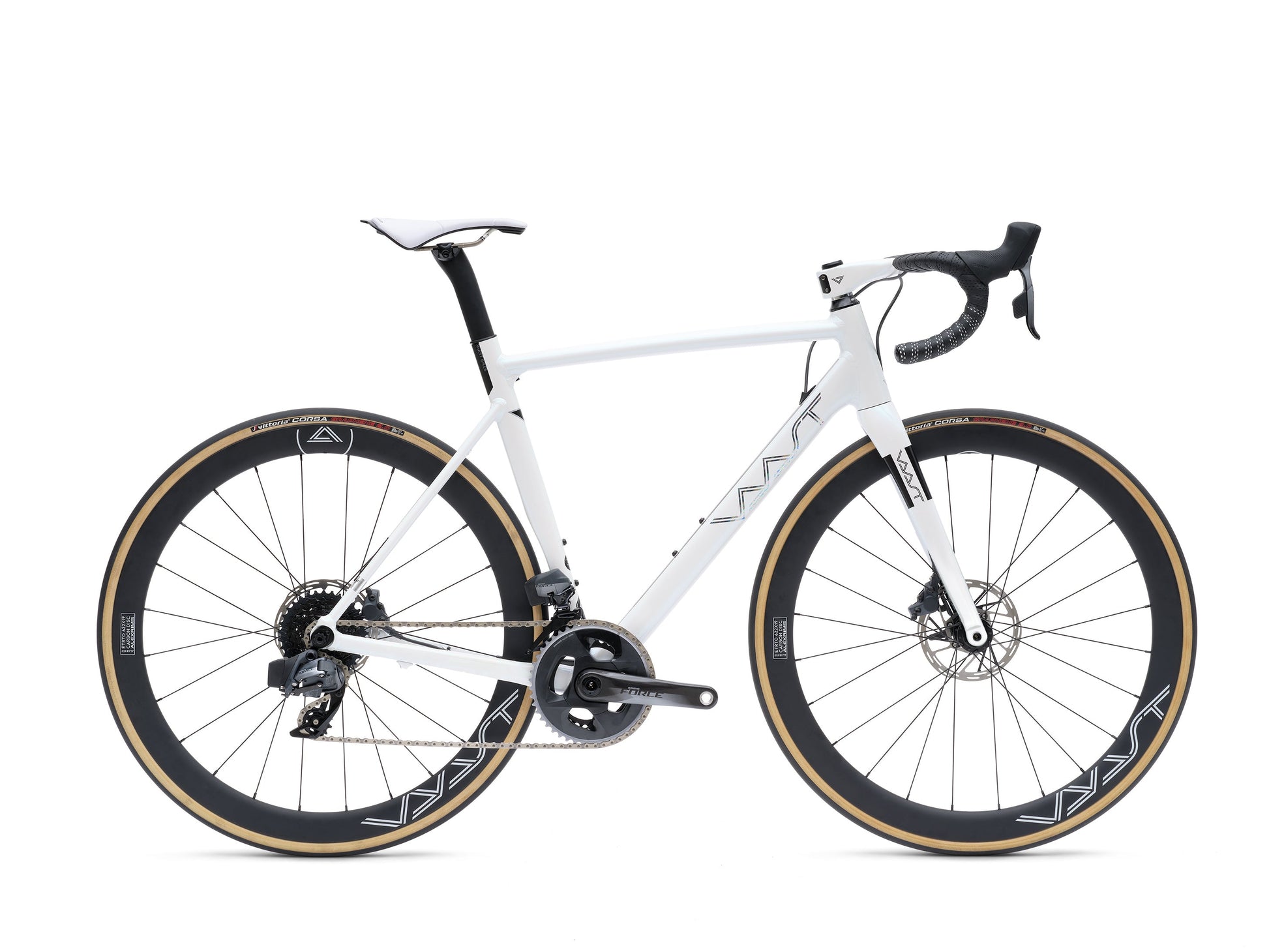

R/1 Force AXS Specification
Specification | |

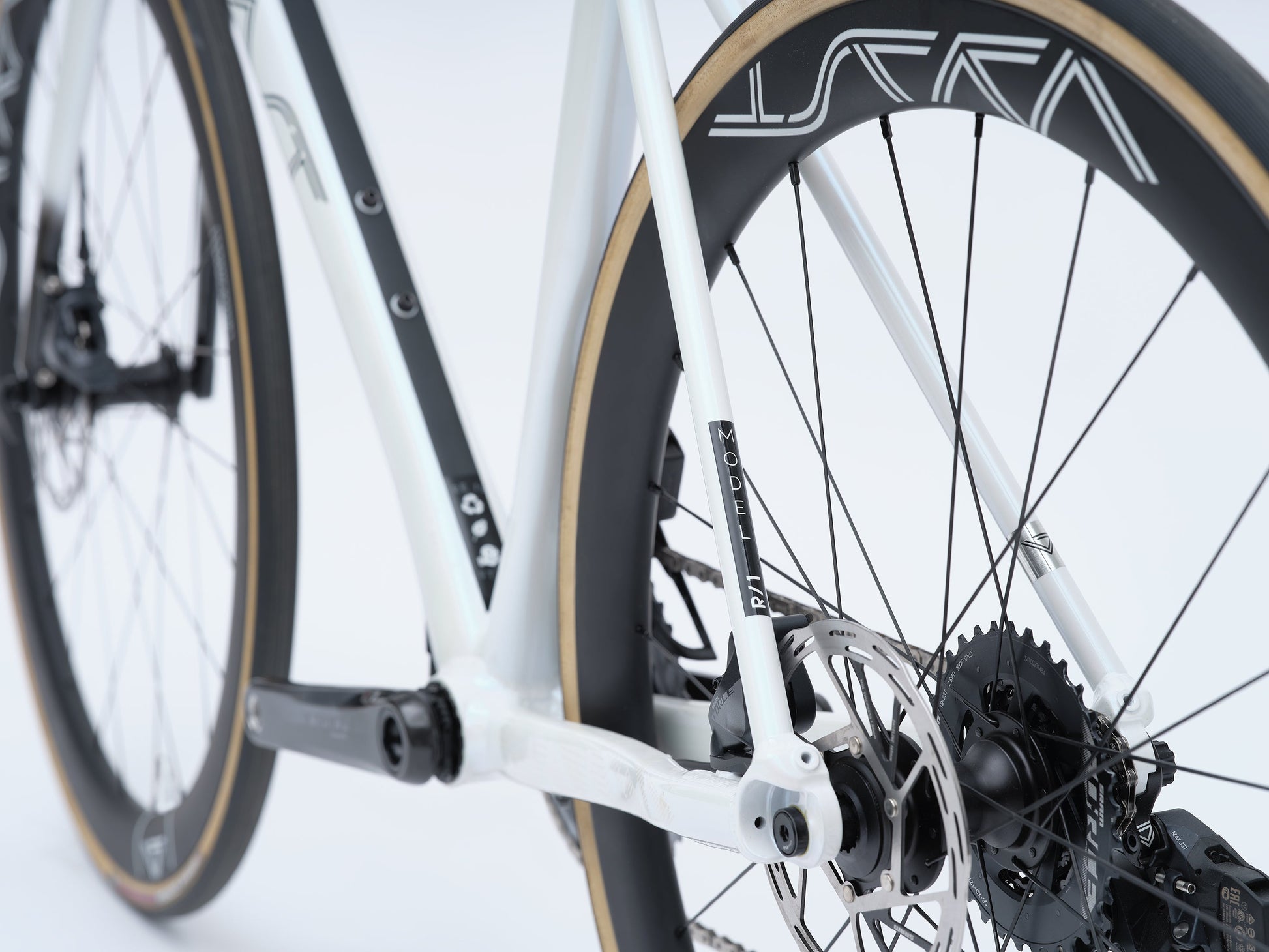

Frame | Road 700c disc, AE81 SuperMag, VAAST Road geometry, internal cable routing, fender ready. Up to 30mm tire clearance |
Frame Weight | 1250g |
Fork | VAAST Road full-carbon disc. Up to 30mm tire clearance |
Tires | Vittoria Corsa, 700 x 25mm w/Ultralight tubes |
Max Tire Clearance | 30mm |
Rims | VAAST Aero Carbon 45mm, Tubeless Ready |
Rotors | SRAM Paceline 160mm |

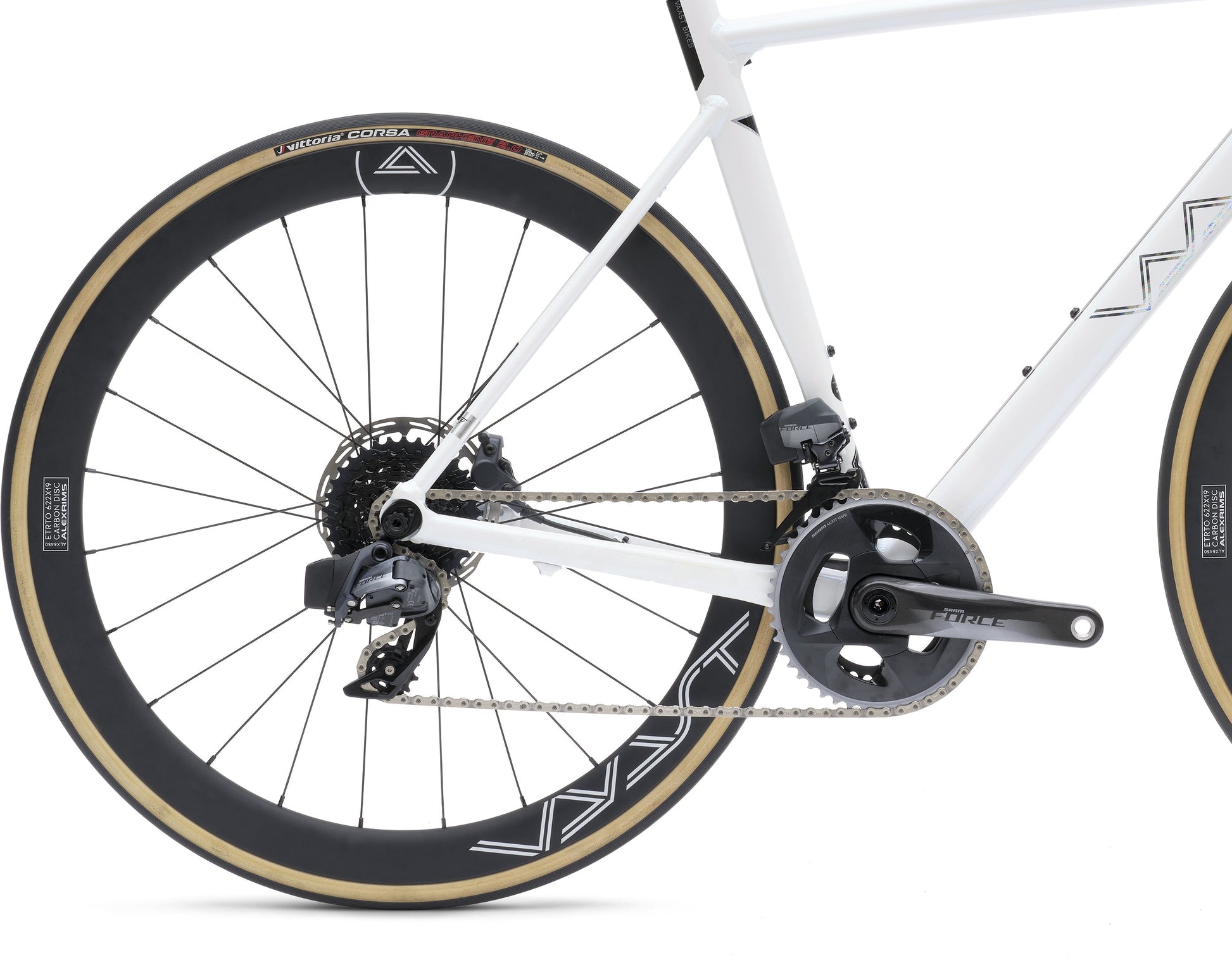

Crank | SRAM Carbon Force DUB, 12-speed 46/33t |
Cassette | SRAM CS XG 1270, 12-speed, 10-33t |
Shifter | SRAM Force eTAP AXS |
RD | SRAM Force eTAP AXS |
FD | SRAM Force eTAP AXS |
Chain | SRAM Force 12-speed |
Brakes | SRAM Force eTAP, hydraulic disc |
Bottom Bracket | SRAM DUB T47 |
Hub F | Sealed cartridge bearing, 12 x 100mm thru axle, Centerlock, 24H |
Hub R | Sealed cartridge bearing, XDR 12-speed, 12 x 142mm thru axle, Centerlock, 24H |
Spokes | Bladed Double butted stainless |
Axles | VAAST M12 w/Removable lever |
Handlebar | VAAST Integrated Pro Carbon |
Stem | VAAST Integrated Pro Carbon |
Grips / Tape | VAAST Anti Slip |
Seat Post | VAAST Carbon fiber, (300mm 49/52, 350mm 54/56/58/60) |
Saddle | ProLogo Scratch M5 PAS w/Tirox rails |
CRAFTED FOR SPEED
LIGHTER, STIFFER, PROFOUNDLY BETTER.

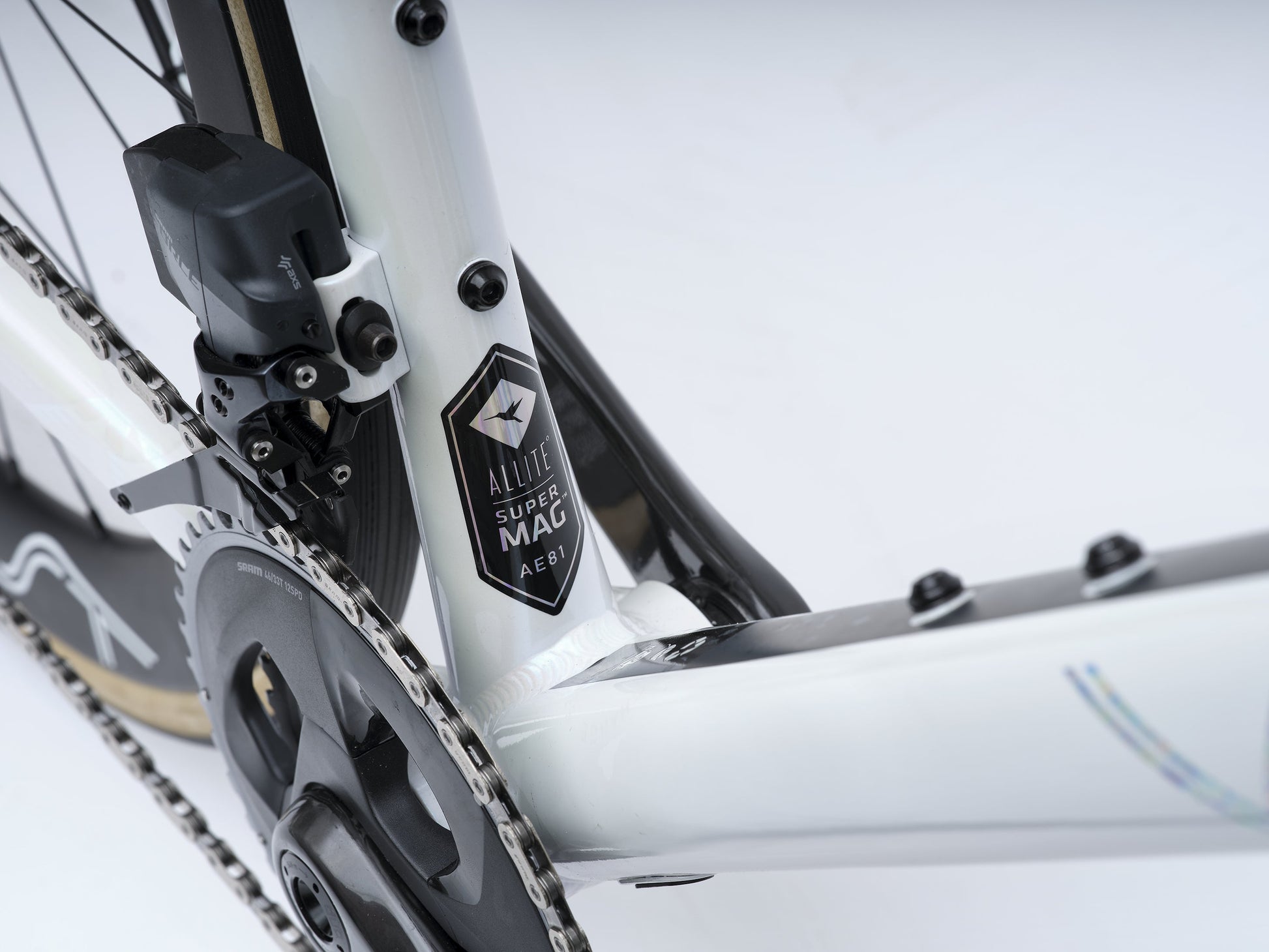

VAAST Bikes is the first to use ALLITE® SUPER MAGNESIUM™, a true innovation in material science. This high-strength alloy features excellent shock absorption properties, weighs 33% less than Aluminum and 50% less than Titanium by volume, and is significantly stronger than both.
Through the exclusive use of this eco-friendly metal, we have achieved a ride that feels like no other.
CONFIDENCE AT FULL SPEED.
With a weight and performance level other non-ferrous metal frames can’t quite achieve, the 1250g Allite Super Magnesium™ frame is meticulously crafted with progressive geometry that results in the perfect fit no matter the rider. Utilizing VAAST V-Fit parameters for comfort and control, the head tube and seat tube angles are carefully chosen to place the rider in an optimal, confident position and ensure proper trail for neutral steering geometry.
COMMITTED TO A VIBRANT CYCLING ECOLOGY
From the beginning we’ve been inspired to promote the responsible use of materials and responsible riding in all its forms. Our frames are more sustainably made and they’re 100% recyclable. We were also the first bike brand to use 100% fiber-based, plastic-free packaging.
