Vaast Bikes Japan

R/1 700C FRAMESET MOONSTONE WHITE

R/1 700C FRAMESET MOONSTONE WHITE

¥268,000 JPY
¥268,000 JPY
Sale Sold out

VAT to be collected upon delivery

SIZE

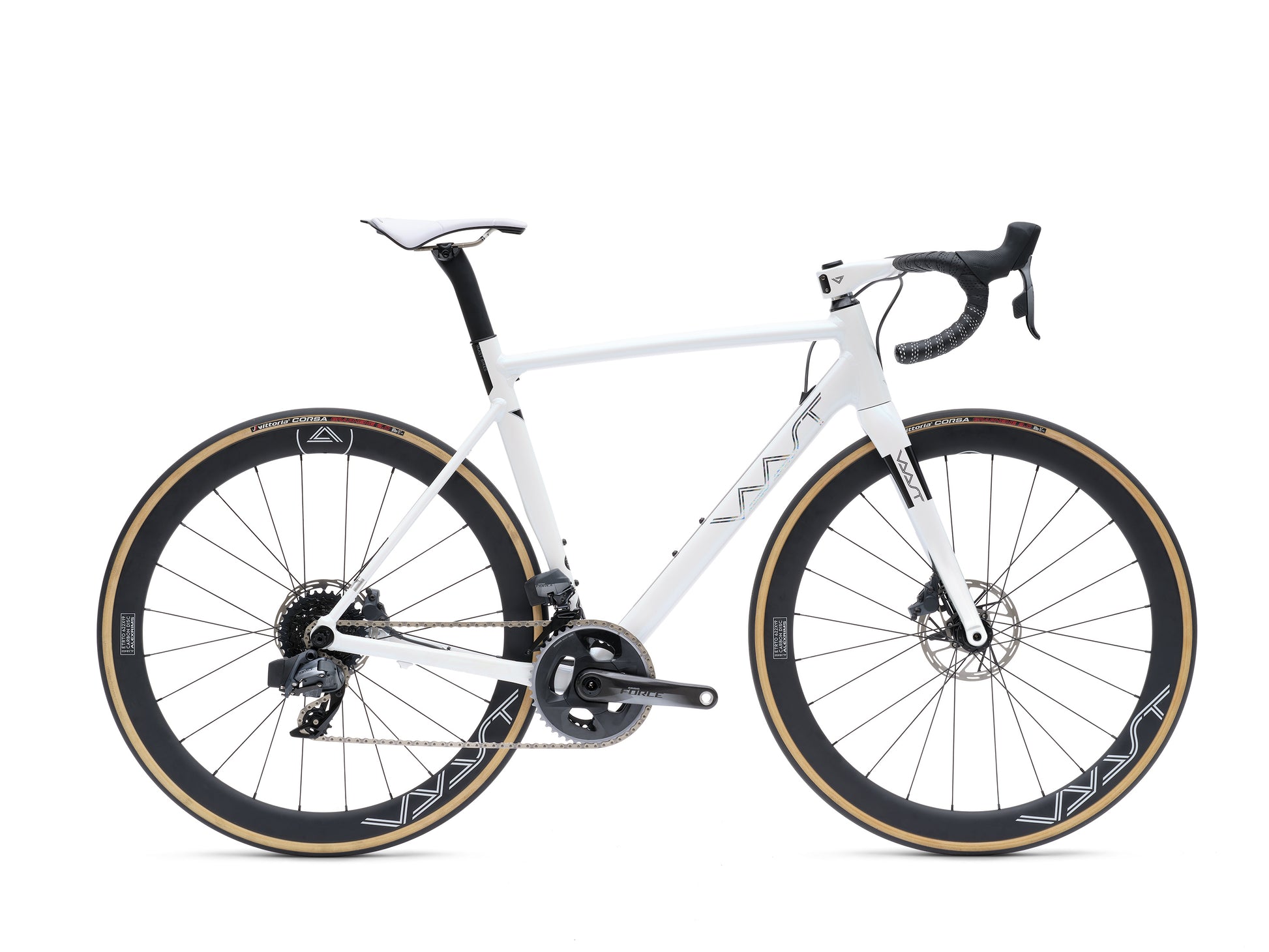

The aero-inspired Model R/1 Road optimizes technology and design for pavement - where speed, aerodynamics, weight and agility make all the difference. With a weight and performance level other non-ferrous metal frames can’t quite achieve, the 1250g Allite Super Magnesium™ frame is meticulously crafted with progressive geometry that results in the perfect fit no matter the rider. Utilizing VAAST V-Fit parameters for comfort and control, the head tube and seat tube angles are carefully chosen to place the rider in an optimal, confident position and ensure proper trail for neutral steering geometry. While the R/1 adopts the use of VAAST’s proprietary V-Fit technology like its award-winning A/1 predecessor, unlike the A/1, the R/1 tube profiles re-imagine Super Magnesium capabilities resulting in a 30% aerodynamic performance gain over conventional round tube frames. Additionally, clearances are ample enough to fit up to 30mm tires, or to allow fenders to be fitted with conventional 25/28mm tires. All of this, combined with carbon wheel sets, and the proprietary carbon fork and seatpost, rounds up to a complete package for a ride worthy of getting lost in the wind for countless miles.

Light, aerodynamic, fast - the all new VAAST Model R/1.

View full details

R/1 Frameset

R/1 Frame Geometry

 A/1 Frameset X-Small Small Medium Large X-Large
E - Reach 365 370 380 388 400
F - Stack 500 510 540 565 590
O - Seat Tube Length 470 500 520 540 560
G - Top Tube Length, Horizontal 494 511 540 561 580
M - Seat Tube Angle 75.5 74.5 73.5 73 73
N - Head Tube Angle 70.5 71.5 72 73 73
10 - Head Tube Length 94 101 129 153 183
H - Wheelbase 973 973 988 990 1009
I - Chainstay Length 410 410 410 410 410
J - Front Center 575 575 591 590 610
K - BB Drop 75 75 72 72 69
L - BB Height 269 269 272 272 275
Q - Standover Heigth 722 742 766 788 812
R - Fork Rake/Offset 52 52 52 45 45
S - Fork Length, Full 375 375 375 375 375
T - Trail 65 59 56 57 57
Seatpost Length 300 300 350 350 350

CRAFTED FOR SPEED

LIGHTER, STIFFER, PROFOUNDLY BETTER.

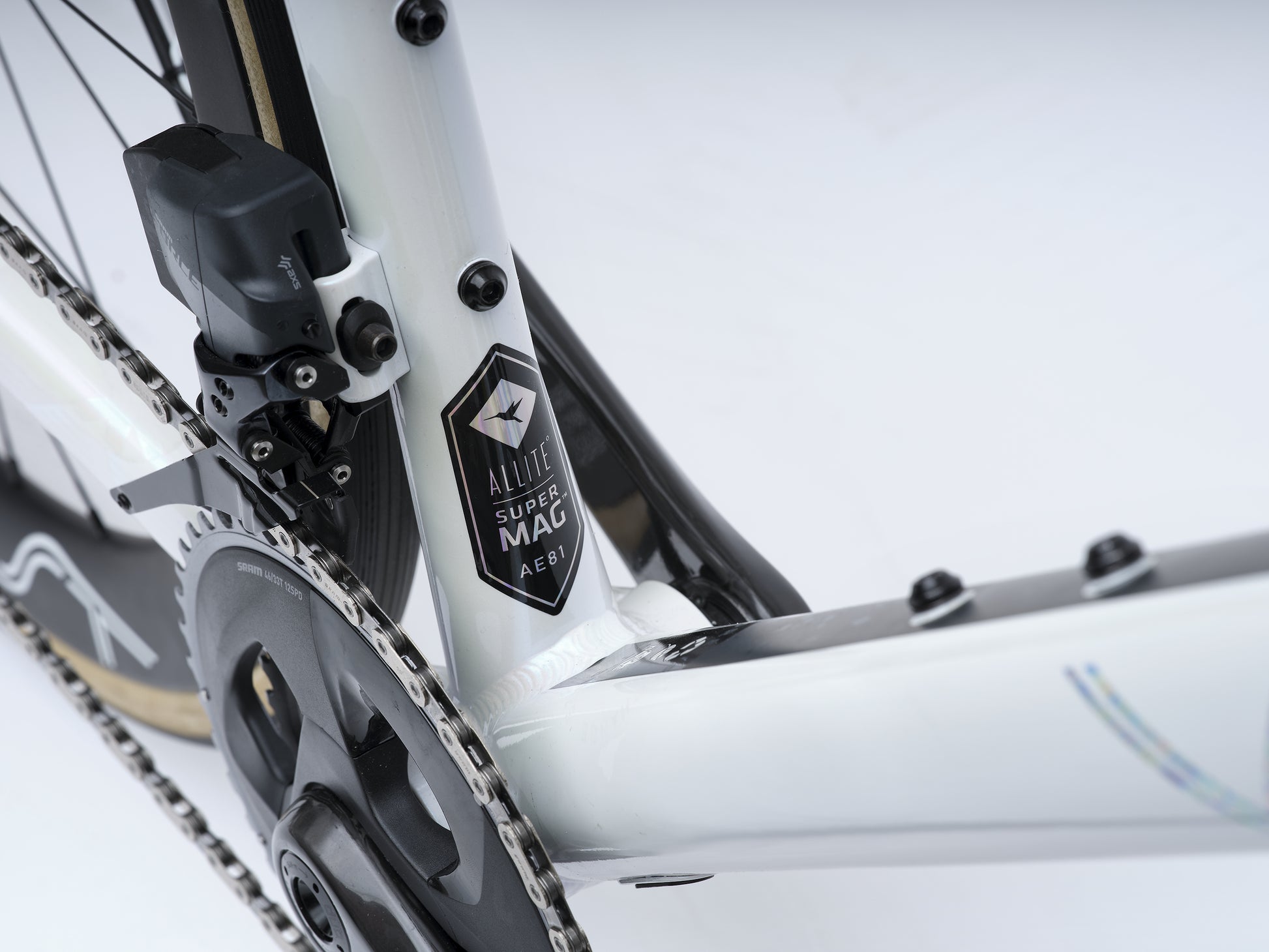

VAAST Bikes is the first to use ALLITE® SUPER MAGNESIUM™, a true innovation in material science. This high-strength alloy features excellent shock absorption properties, weighs 33% less than Aluminum and 50% less than Titanium by volume, and is significantly stronger than both.

Through the exclusive use of this eco-friendly metal, we have achieved a ride that feels like no other.

CONFIDENCE AT FULL SPEED.

With a weight and performance level other non-ferrous metal frames can’t quite achieve, the 1250g Allite Super Magnesium™ frame is meticulously crafted with progressive geometry that results in the perfect fit no matter the rider. Utilizing VAAST V-Fit parameters for comfort and control, the head tube and seat tube angles are carefully chosen to place the rider in an optimal, confident position and ensure proper trail for neutral steering geometry.

COMMITTED TO A VIBRANT CYCLING ECOLOGY

From the beginning we’ve been inspired to promote the responsible use of materials and responsible riding in all its forms. Our frames are more sustainably made and they’re 100% recyclable. We were also the first bike brand to use 100% fiber-based, plastic-free packaging.
