R/1 Frameset
R/1 Frame Geometry
A/1 Frameset | X-Small | Small | Medium | Large | X-Large |
E - Reach | 365 | 370 | 380 | 388 | 400 |
F - Stack | 500 | 510 | 540 | 565 | 590 |
O - Seat Tube Length | 470 | 500 | 520 | 540 | 560 |
G - Top Tube Length, Horizontal | 494 | 511 | 540 | 561 | 580 |
M - Seat Tube Angle | 75.5 | 74.5 | 73.5 | 73 | 73 |
N - Head Tube Angle | 70.5 | 71.5 | 72 | 73 | 73 |
10 - Head Tube Length | 94 | 101 | 129 | 153 | 183 |
H - Wheelbase | 973 | 973 | 988 | 990 | 1009 |
I - Chainstay Length | 410 | 410 | 410 | 410 | 410 |
J - Front Center | 575 | 575 | 591 | 590 | 610 |
K - BB Drop | 75 | 75 | 72 | 72 | 69 |
L - BB Height | 269 | 269 | 272 | 272 | 275 |
Q - Standover Heigth | 722 | 742 | 766 | 788 | 812 |
R - Fork Rake/Offset | 52 | 52 | 52 | 45 | 45 |
S - Fork Length, Full | 375 | 375 | 375 | 375 | 375 |
T - Trail | 65 | 59 | 56 | 57 | 57 |
Seatpost Length | 300 | 300 | 350 | 350 | 350 |

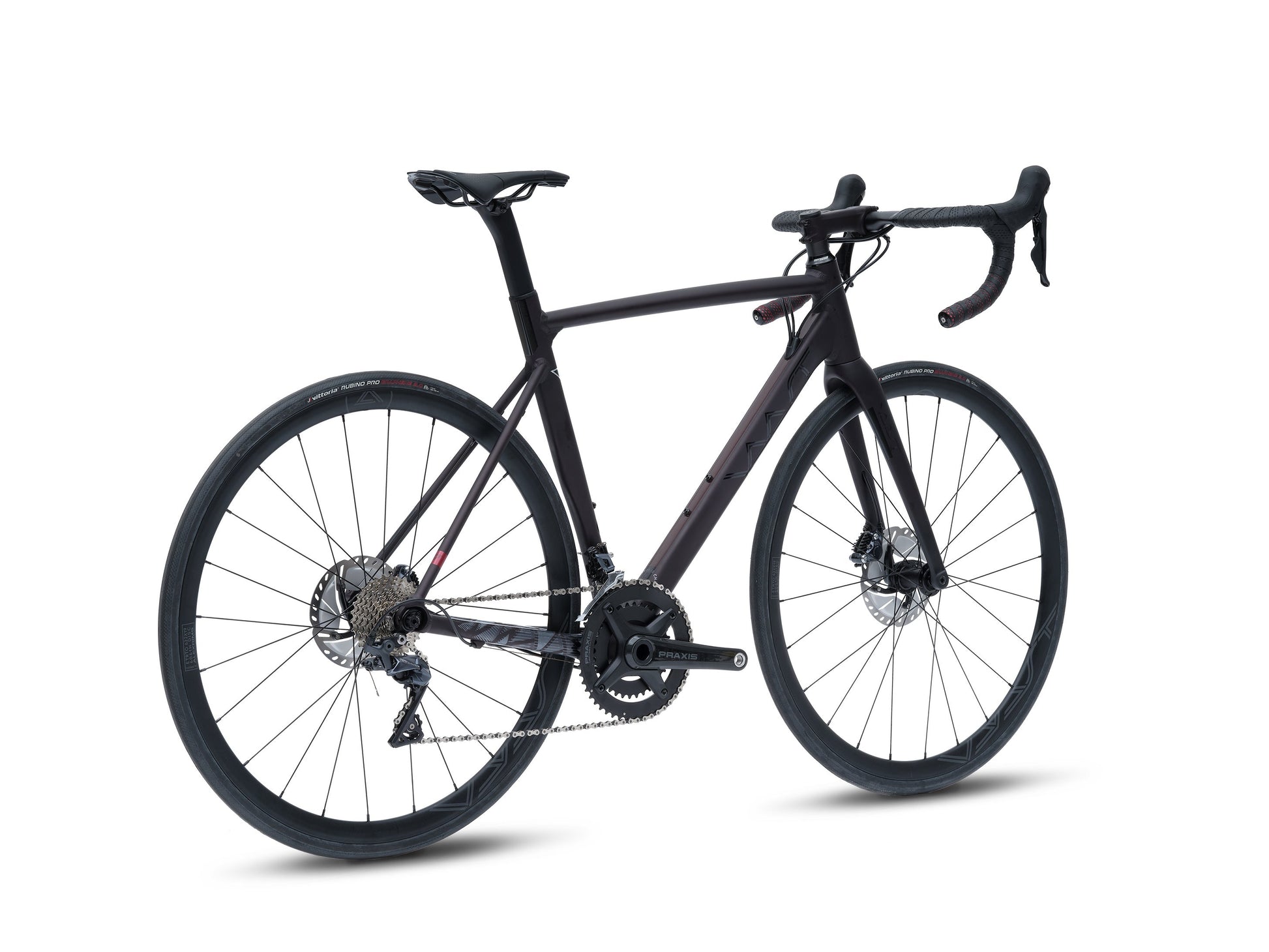

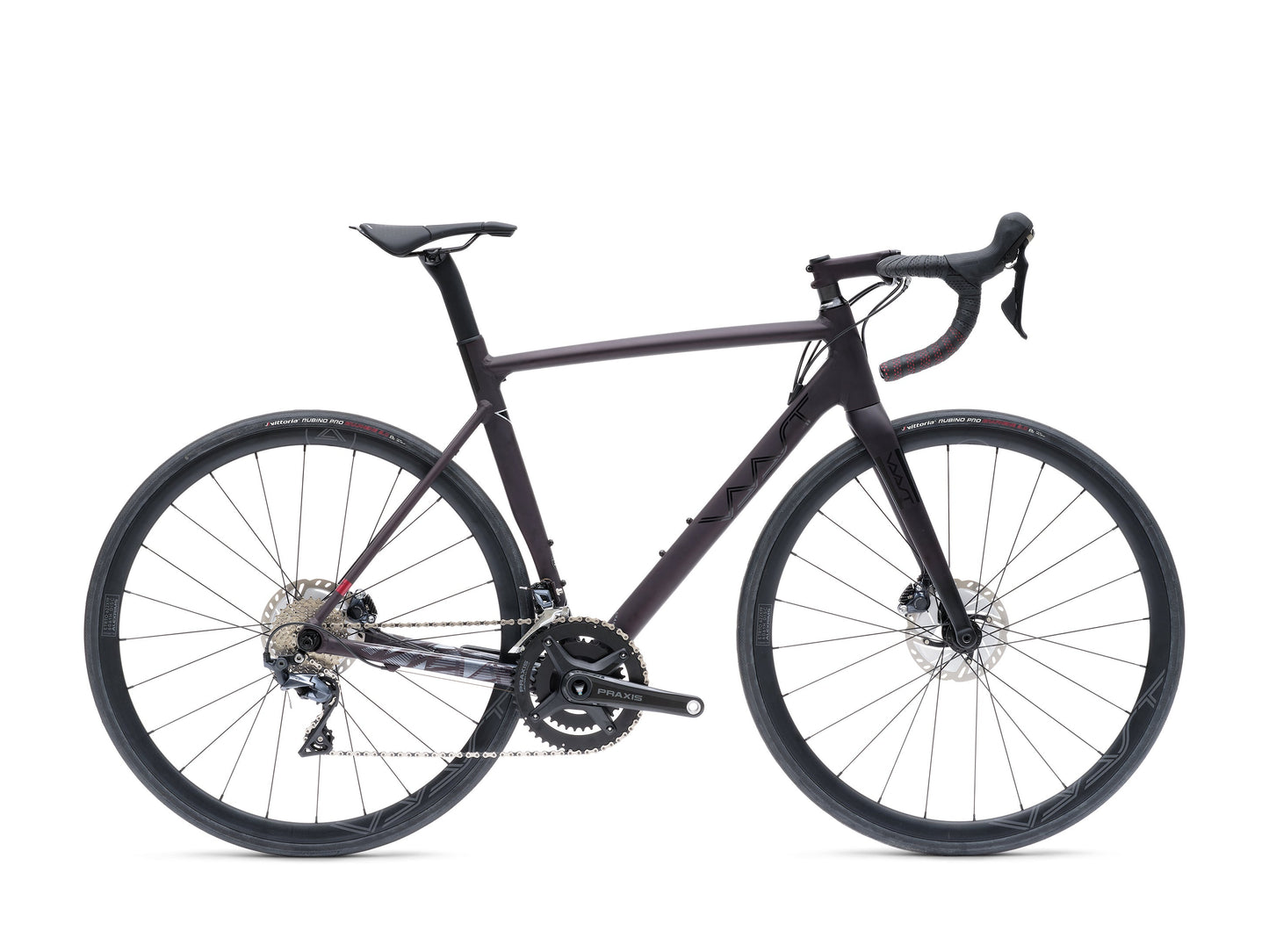

R/1 Ultegra Specification
Specification | |
Frame | Road 700c disc, AE81 SuperMag, VAAST Road geometry, internal cable routing, fender ready. Up to 30mm tire clearance |
Frame Weight | 1250g |
Fork | VAAST Road full-carbon disc. Up to 30mm tire clearance |
Tires | Vittoria Rubino Pro, 700 x 25mm w/Ultralight tubes |
Max Tire Clearance | 30mm |
Rims | VAAST Aero 30mm Aluminum, Tubeless Ready |
Rotors | Shimano RT800 160mm |

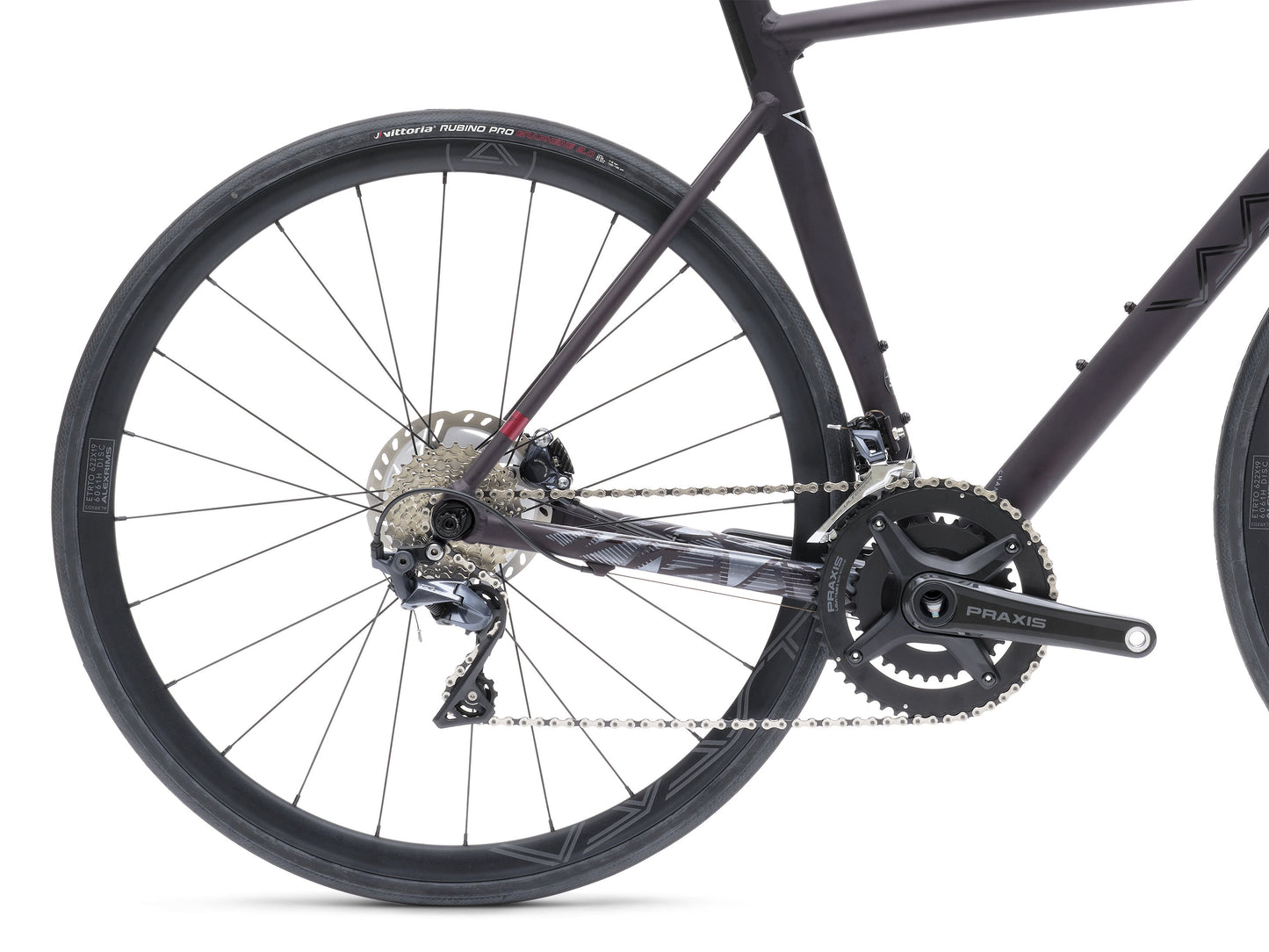

Crank | Praxis Zyante carbon 50/34t w/ M30 axle |
Cassette | Shimano Ultegra R8000, 11-speed, 11-30t |
Shifter | Shimano Ultegra Disc R8020 |
RD | Shimano Ultegra R8000, 11-speed |
FD | Shimano Ultegra R8000, braze-on |
Chain | KMC X11 11-speed |
Brakes | Shimano Ultegra R8070, hydraulic disc |
Bottom Bracket | Praxis T47 IB Enduro Bearings |
Hub F | Sealed cartridge bearing, 12 x 100mm thru axle, Centerlock, 24H |
Hub R | Sealed cartridge bearing, 11-speed, 12 x 142mm thru axle, Centerlock, 24H |
Spokes | Bladed Double butted stainless |
Axles | VAAST M12 w/Removable lever |

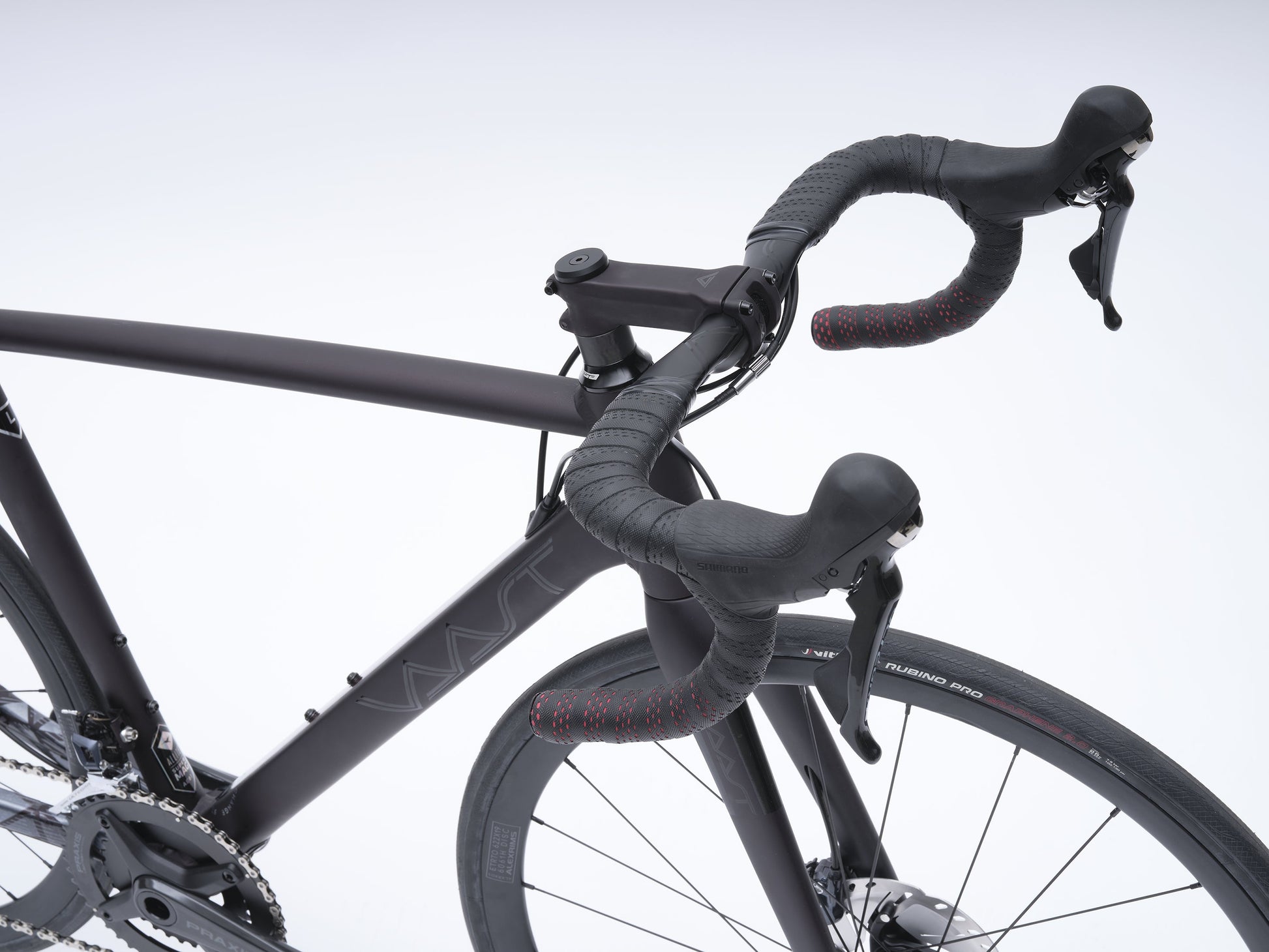

Handlebar | VAAST Aero Carbon |
Stem | VAAST Aero Pro, 3D forged, 8 degree |
Grips / Tape | VAAST Anti Slip |
Seat Post | VAAST Carbon fiber, (300mm 49/52, 350mm 54/56/58/60) |
Saddle | ProLogo Scratch M5 PAS w/T2.0 rails |
CRAFTED FOR SPEED
LIGHTER, STIFFER, PROFOUNDLY BETTER.

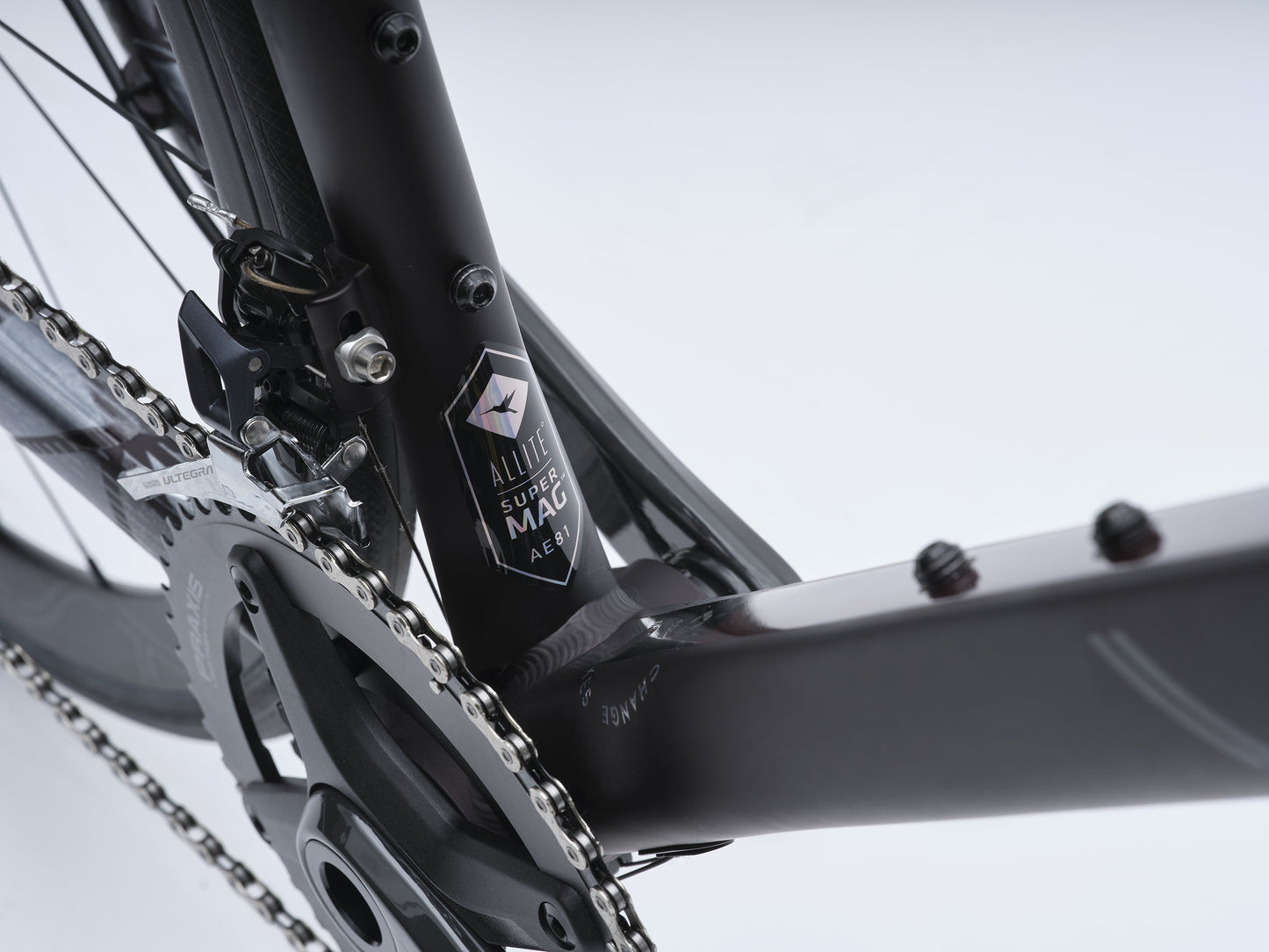

VAAST Bikes is the first to use ALLITE® SUPER MAGNESIUM™, a true innovation in material science. This high-strength alloy features excellent shock absorption properties, weighs 33% less than Aluminum and 50% less than Titanium by volume, and is significantly stronger than both.
Through the exclusive use of this eco-friendly metal, we have achieved a ride that feels like no other.
CONFIDENCE AT FULL SPEED.
With a weight and performance level other non-ferrous metal frames can’t quite achieve, the 1250g Allite Super Magnesium™ frame is meticulously crafted with progressive geometry that results in the perfect fit no matter the rider. Utilizing VAAST V-Fit parameters for comfort and control, the head tube and seat tube angles are carefully chosen to place the rider in an optimal, confident position and ensure proper trail for neutral steering geometry.
COMMITTED TO A VIBRANT CYCLING ECOLOGY
From the beginning we’ve been inspired to promote the responsible use of materials and responsible riding in all its forms. Our frames are more sustainably made and they’re 100% recyclable. We were also the first bike brand to use 100% fiber-based, plastic-free packaging.
